6Boost | SKU:
TS-1-5862B-VB082I

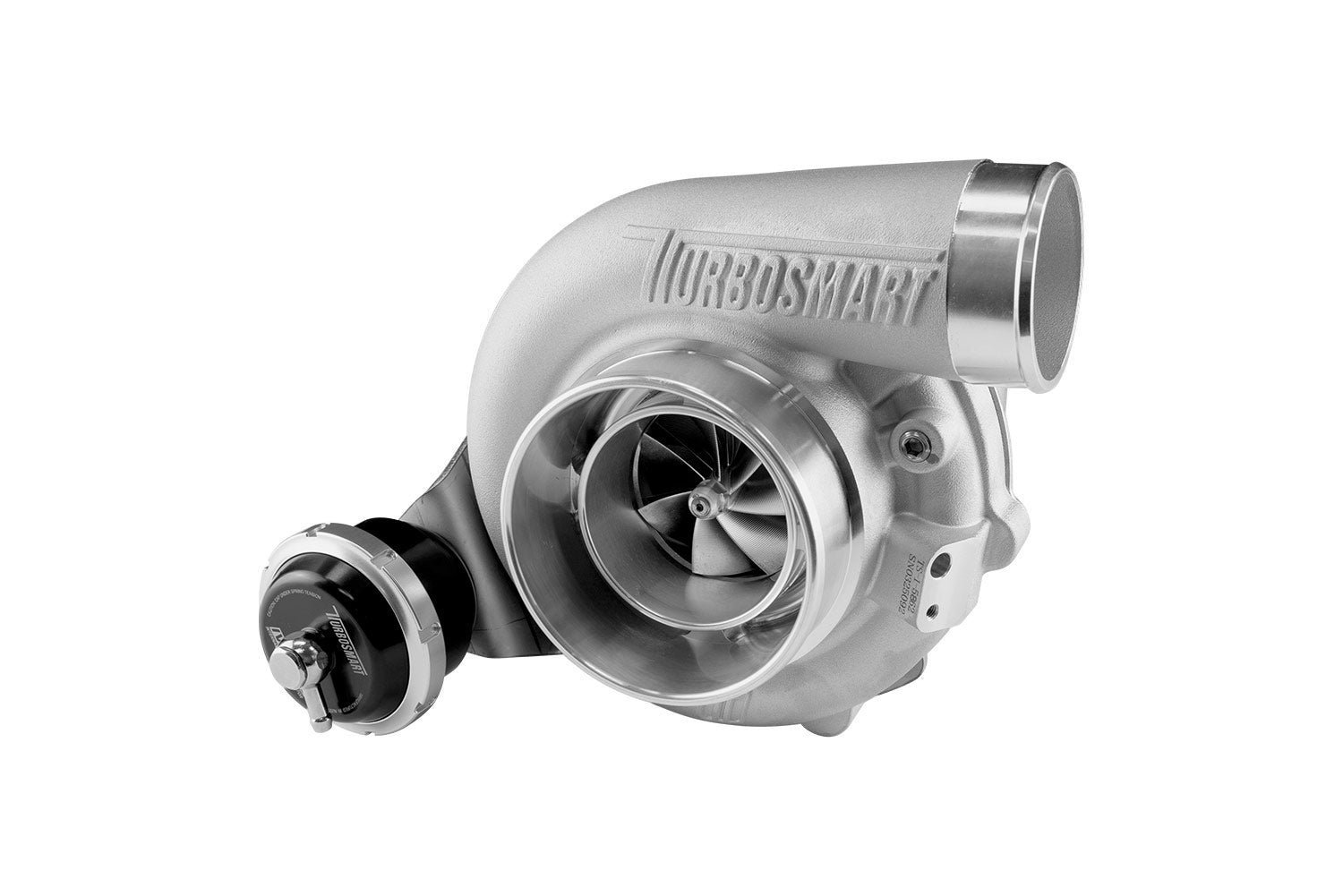

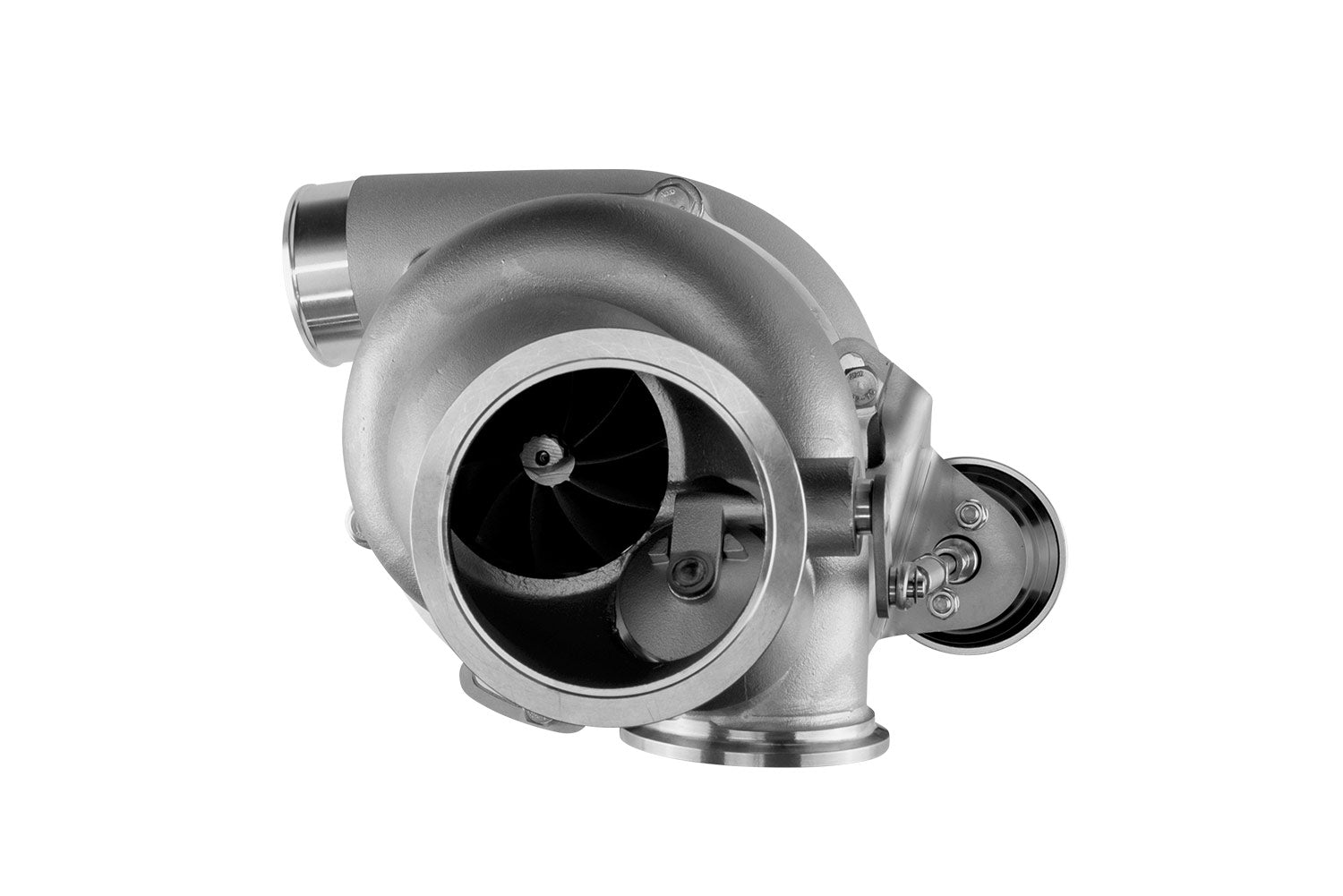

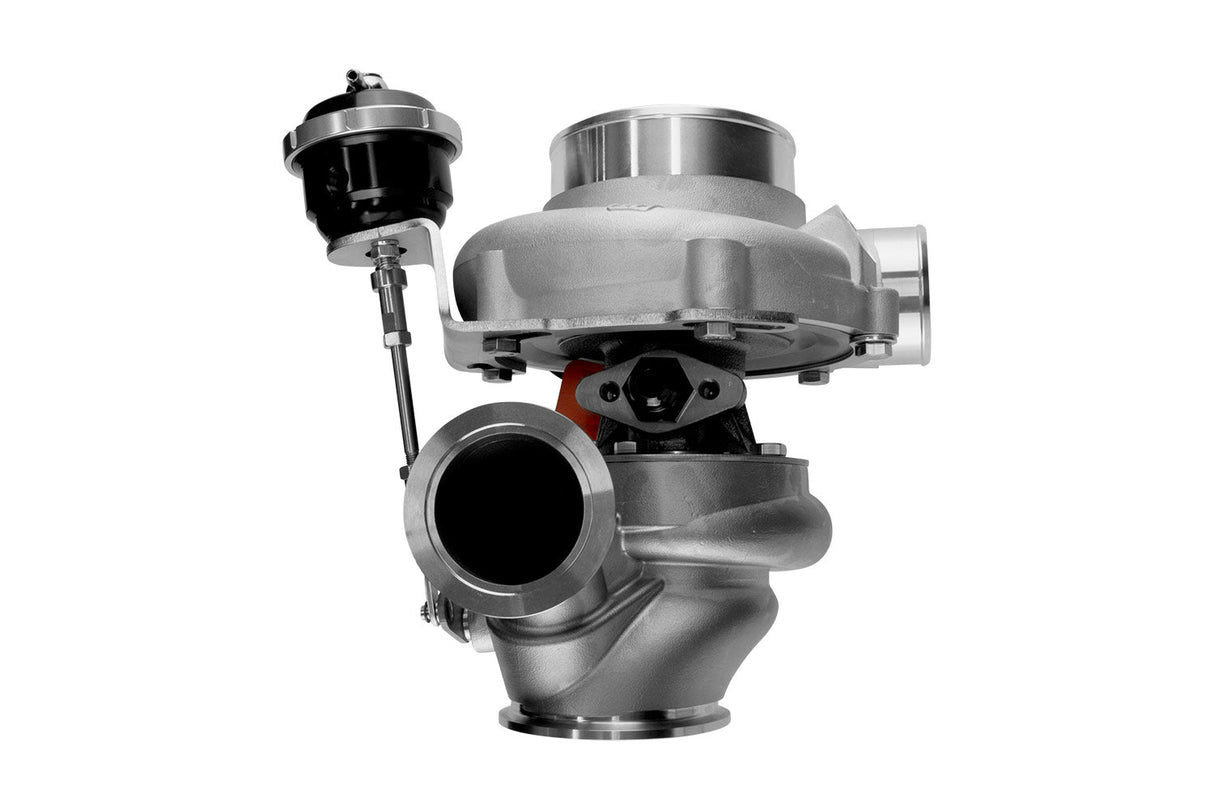

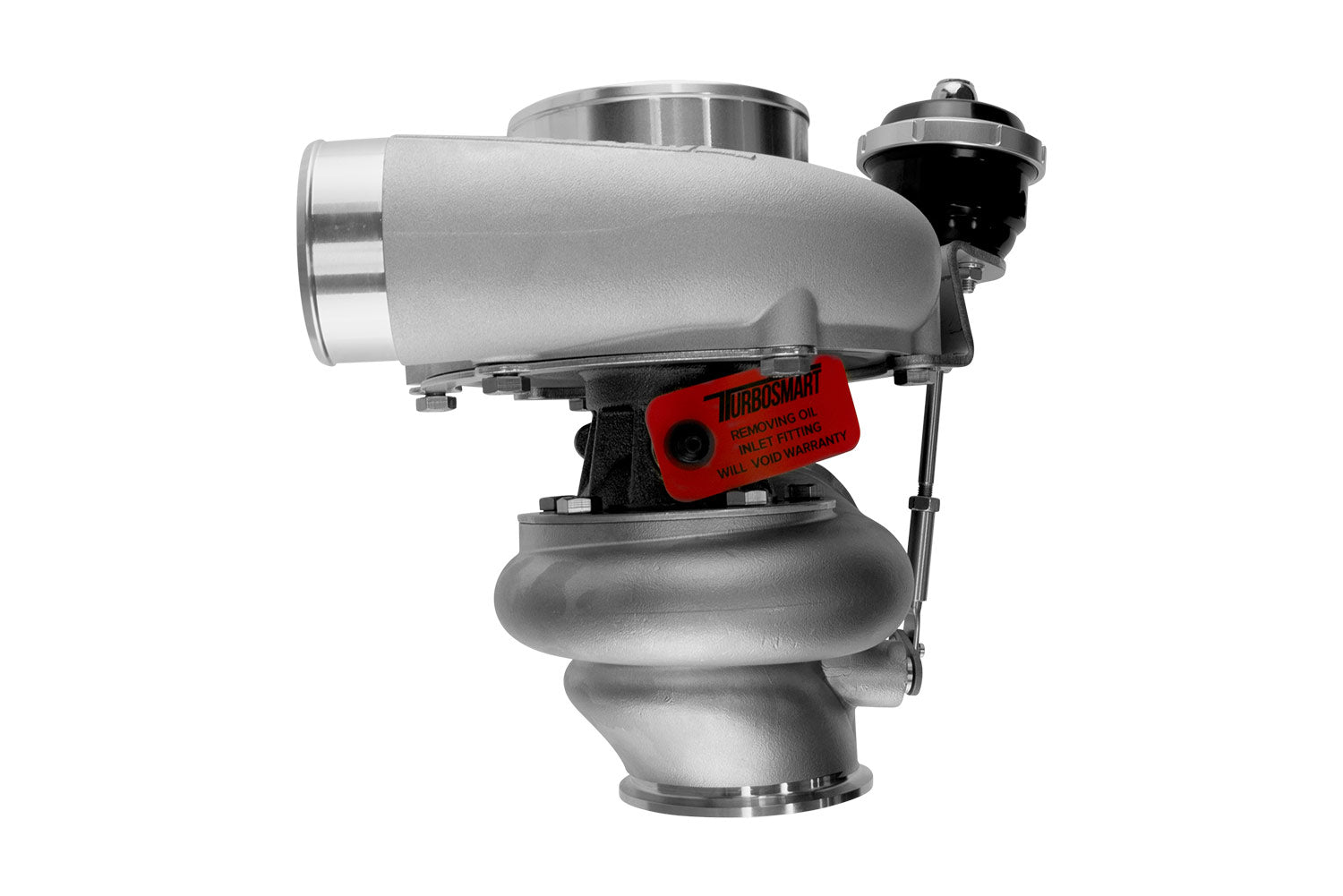

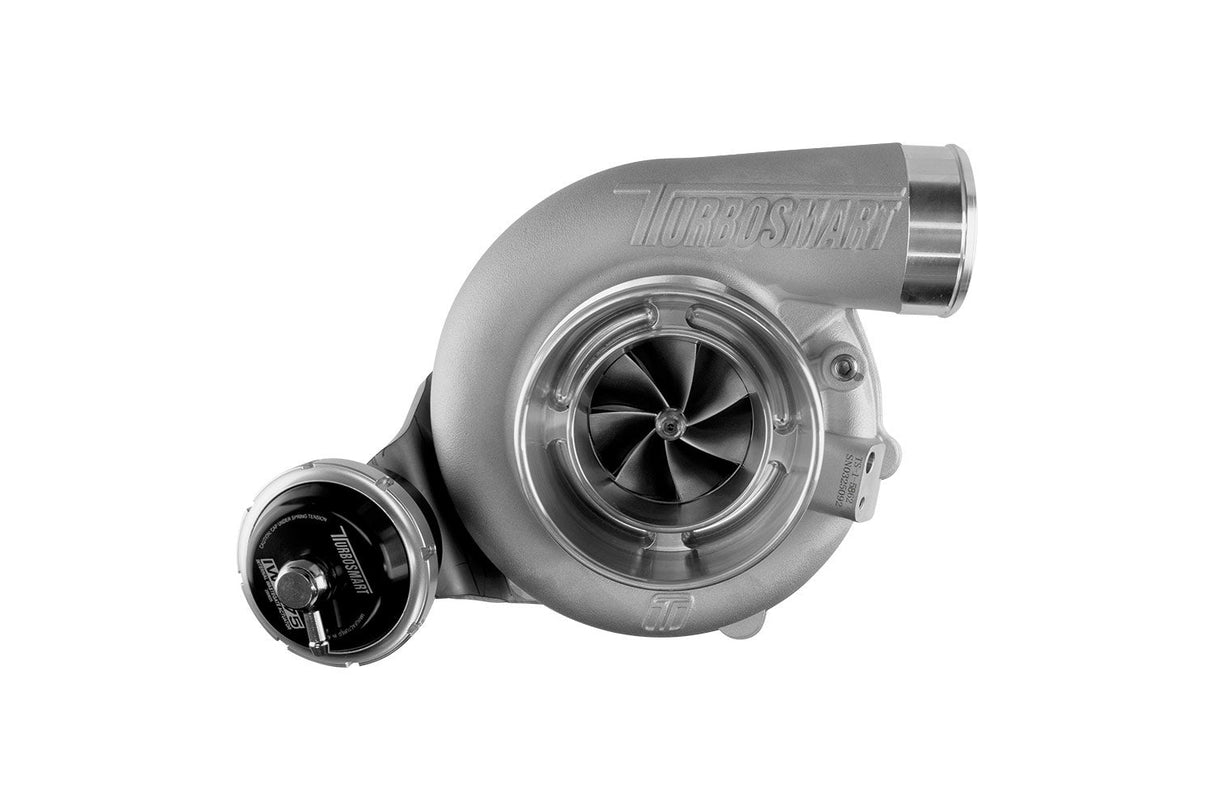

TS-1 Turbocharger 5862 V-Band 0.82AR Internally Wastegated (14psi)
Regular price
£2,819.00
Unit price
Shipping calculated at checkout.
TS-1 Turbocharger 5862 V-Band 0.82AR Internally Wastegated (14psi) is backordered and will ship as soon as it is back in stock.
×
Request a Quote
Product:
Description
Description
Smaller, Lighter and Faster - Turbosmart's turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

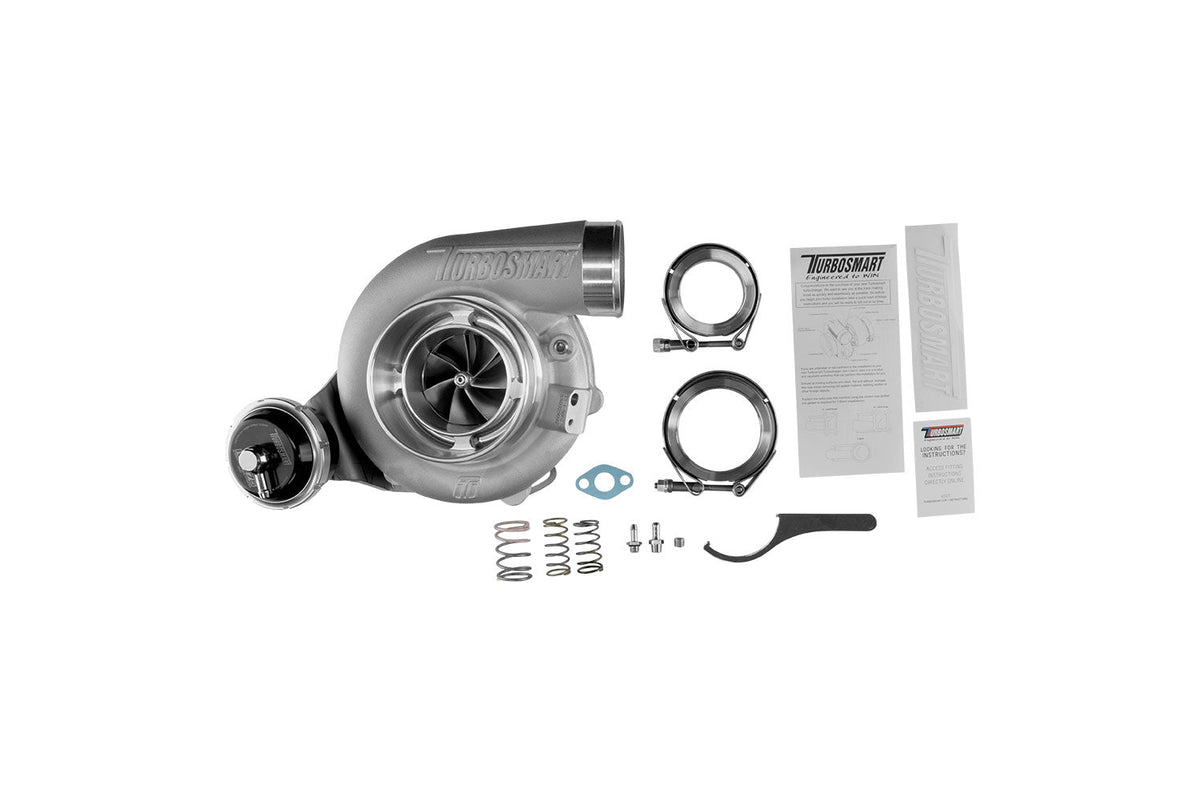

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included. The TS-1 series are oil cooled turbochargers with lightweight investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you've come to know Turbosmart for. The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.
All Turbosmart turbochargers have been designed with an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines - while being smaller, lighter and faster in response than other solutions on the market.
Available In TS-1 oil cooled turbochargers TS-2 oil and water cooled turbochargers V-Band, various T3 Flange and T4 Flange options Reverse rotation (Selected Sizes) Various AR’s options Internal and external wastegated options available
Features Unparalleled transient response Aggressive aerodynamics with 7+7 splitter wheels Lightweight 310s stainless steel investment cast turbine housings Lightweight, Aluminium compressor covers CFD driven designed housings for optimal AR’s and flow T14 Inconel turbine wheel for extreme EGT’s VSR speed balanced Proprietary dual ceramic bearing system Integrated Iron backplate on center housing
Specifications
Compressor Inlet: 4" / 101.6mm
Compressor Inducer: 82mm
Turbine Inlet: T4
Turbine Exducer: 80mm
Turbine AR: 0.96
Turbine Outlet: V-Band (3.50")
Weight: 9.63kg / 21.23bs
Horsepower Rating: 1300-1450HP
Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included. The TS-1 series are oil cooled turbochargers with lightweight investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you've come to know Turbosmart for. The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.
All Turbosmart turbochargers have been designed with an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines - while being smaller, lighter and faster in response than other solutions on the market.
Available In TS-1 oil cooled turbochargers TS-2 oil and water cooled turbochargers V-Band, various T3 Flange and T4 Flange options Reverse rotation (Selected Sizes) Various AR’s options Internal and external wastegated options available
Features Unparalleled transient response Aggressive aerodynamics with 7+7 splitter wheels Lightweight 310s stainless steel investment cast turbine housings Lightweight, Aluminium compressor covers CFD driven designed housings for optimal AR’s and flow T14 Inconel turbine wheel for extreme EGT’s VSR speed balanced Proprietary dual ceramic bearing system Integrated Iron backplate on center housing
Specifications
Compressor Inlet: 4" / 101.6mm
Compressor Inducer: 82mm
Turbine Inlet: T4
Turbine Exducer: 80mm
Turbine AR: 0.96
Turbine Outlet: V-Band (3.50")
Weight: 9.63kg / 21.23bs
Horsepower Rating: 1300-1450HP
