Traum Pistons | SKU:
5S3SG875FT

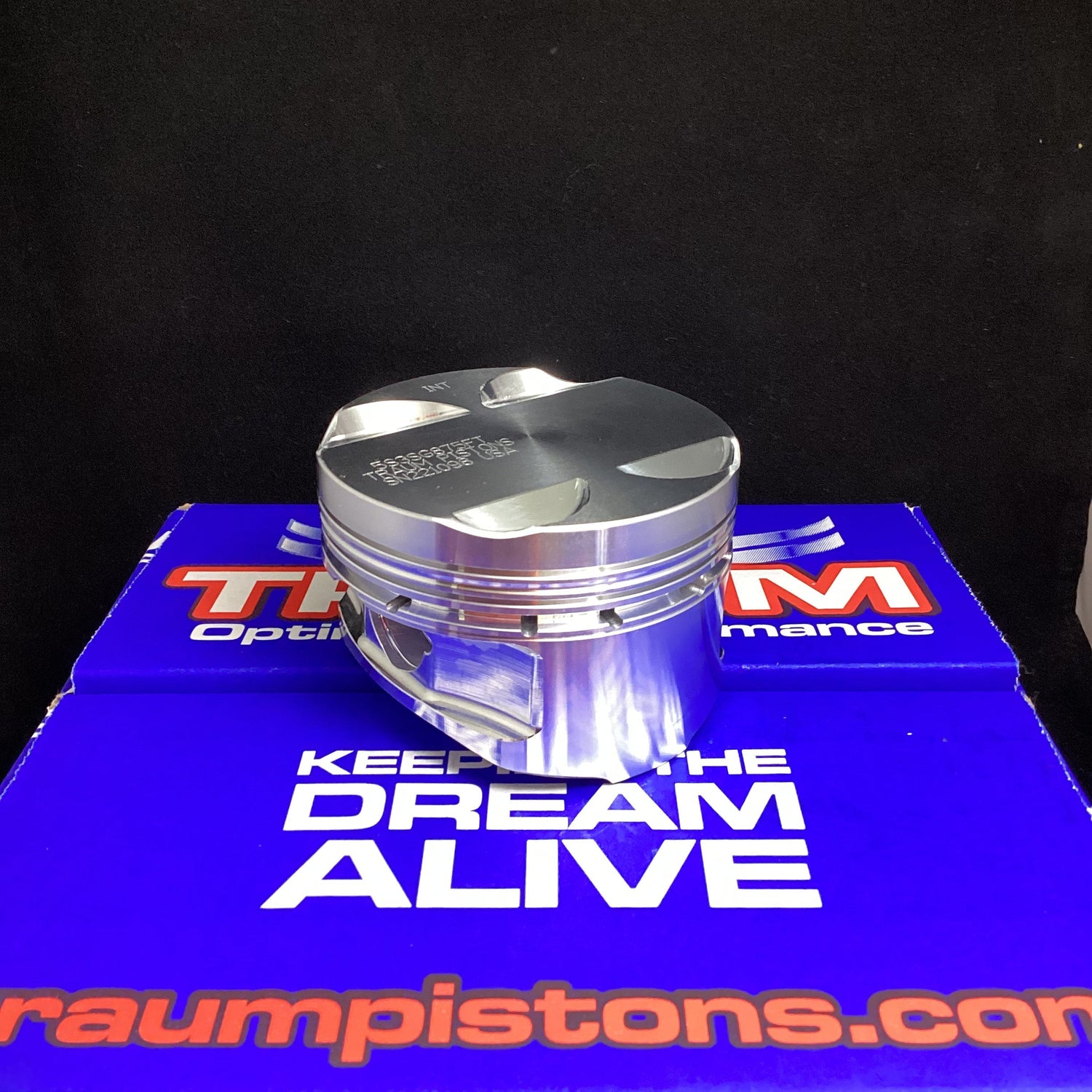

TOYOTA 5S-3SGTE STD TURBO
Regular price
£787.50
Unit price
Shipping calculated at checkout.
TOYOTA 5S-3SGTE STD TURBO - 87.5 / FLAT TOP is backordered and will ship as soon as it is back in stock.
×
Request a Quote
Product:
Description
Description
Technical Specifications:
- Engine Compatibility: Toyota 5S Bottom End with 3S-GTE Cylinder Head Only (5S-GTE Stroker Build)
- Power Rating (Standard): Capable of handling 550-600 HP with standard turbo wrist pins
- Compression Ratio: 10.0:1 (-3.53cc Dome Volume)
- Available Bore Sizes: 87.50 mm (3.4449")
-
Engine Dimensions & Specs:
- 91.00 mm (3.5827") Stroke
- 138.00 mm (5.433") Rod Length with 22 mm Pin
- 32.38 mm (1.2750") Compression Height
- 216.00 mm (8.5040") Block Height | 0.20 mm (0.0077") Deck Clearance
- 49.0cc Head Volume (3S-GTE) | 1.52 Rod Ratio
- Calculated Displacement: 2189.70cc (133.57 ci)
- Gasket Specifications (Calculated): 87.50 mm (3.445") Diameter | 1.02 mm (0.040") Thickness | 6.1cc Volume
Available Upgrades:
- Heavy Duty Pin Upgrade (1000 HP Rating): Upgrade to high-strength wrist pins to support up to 1000 HP. Use part number P222350250H (Available as an upgrade option only).
