Traum Pistons | SKU:
3TC860090HT

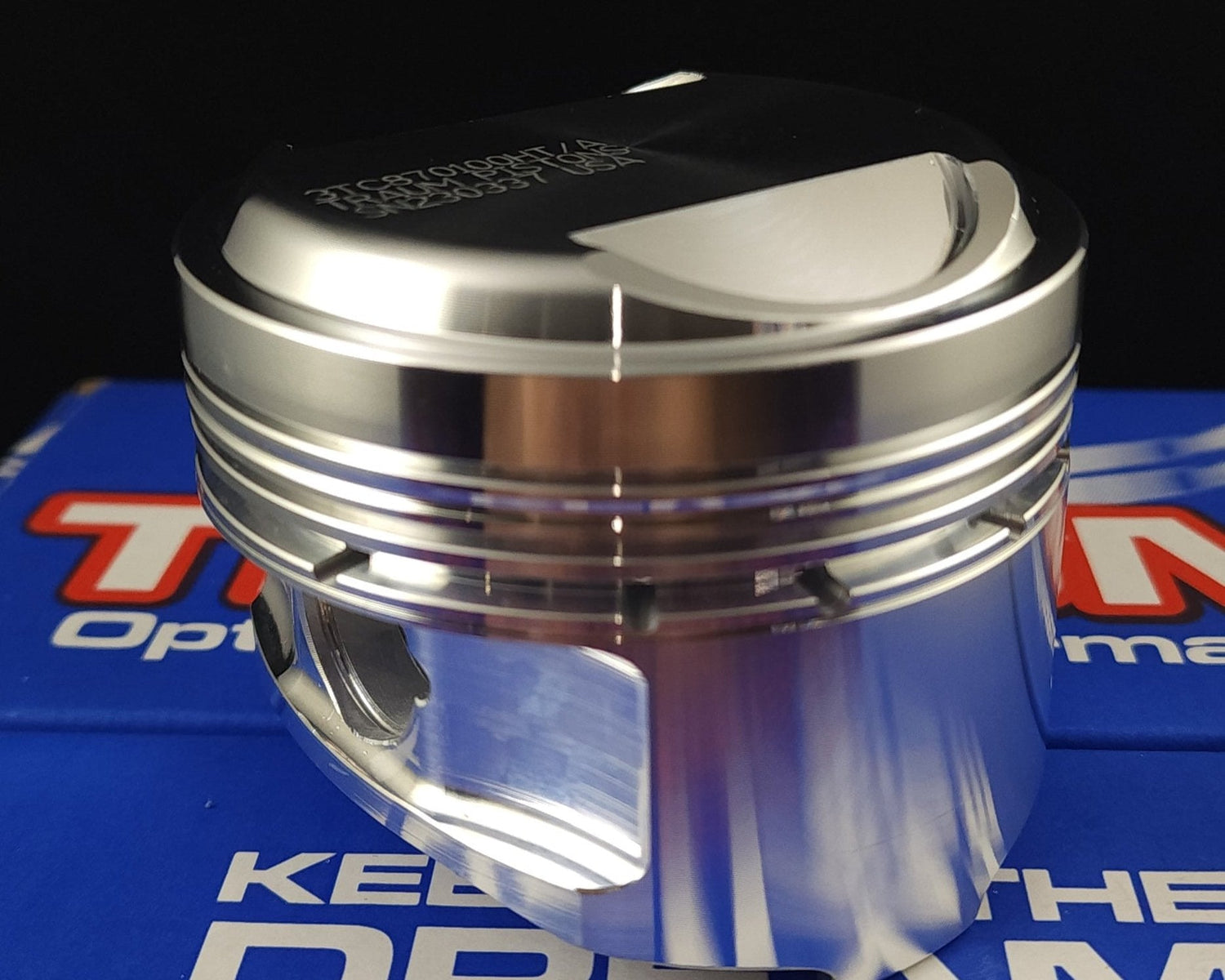

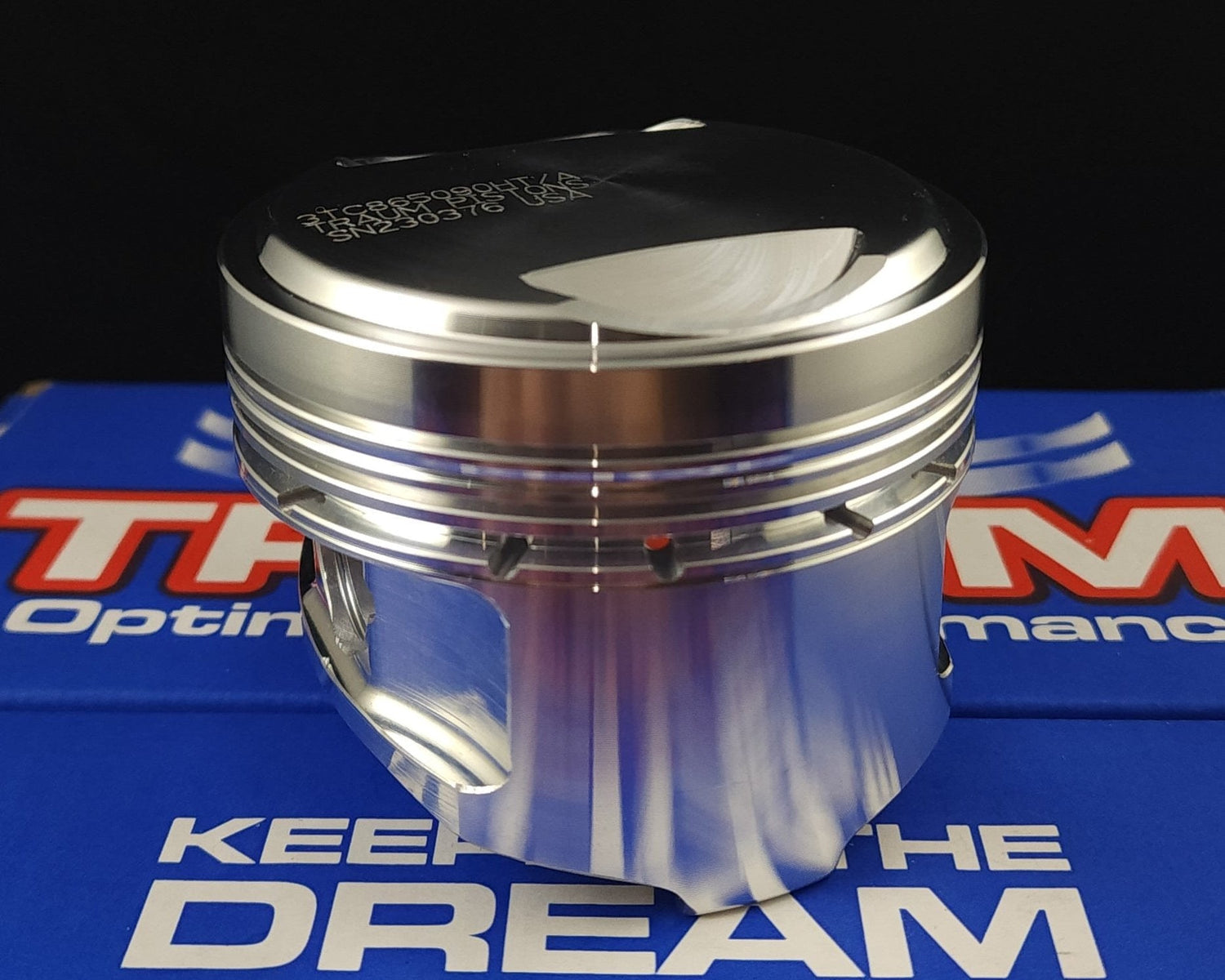

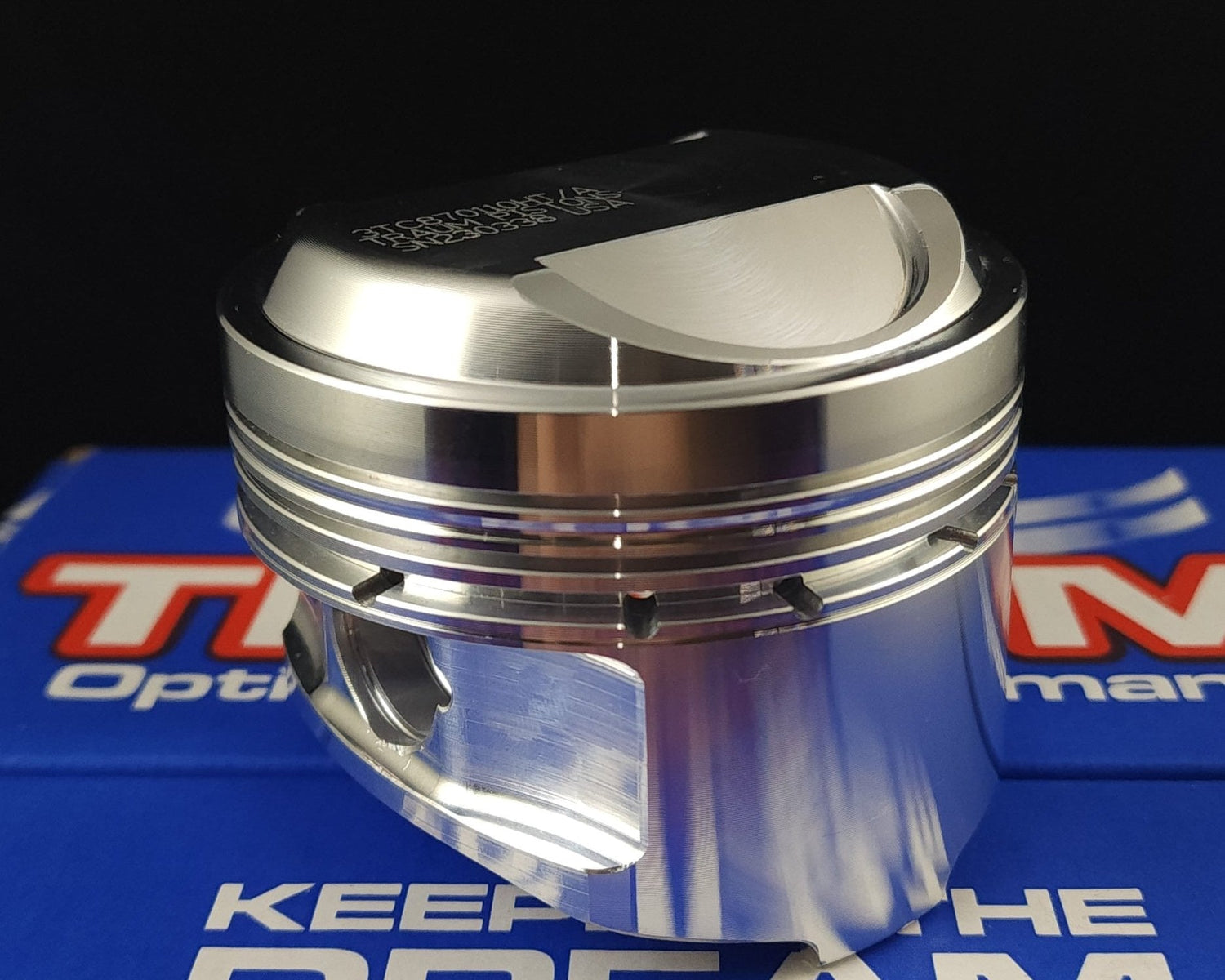

TOYOTA 3TC STD TURBO
Regular price
£787.50
Unit price
Shipping calculated at checkout.
TOYOTA 3TC STD TURBO - 86 / 9:1 is backordered and will ship as soon as it is back in stock.
×
Request a Quote
Product:
Description
Description
Technical Specifications:
- Engine Compatibility: Toyota 3TC (Standard Turbo Configuration)
- Compression Ratio Configurations: 9:1, 10:0:1, and 11.0:1 (Note: 89.0 mm bore is only available in 10:1 CR)
-
Available Bore Sizes & Oversizes:
- 86.0 mm (+1.0 mm)
- 86.5 mm (+1.5 mm)
- 87.0 mm (+2.0 mm)
- 89.0 mm (+4.0 mm)
- Engine Dimensions: 34.925 mm (1.375") Compression Height | 22 mm Factory (OE) Pin Diameter
- Included in Kit: Premium turbo rings, standard turbo wrist pins (rated for up to 25 PSI), and round pin retainers
Available Upgrades & Alternative Versions:
- Tool Steel Pin Upgrade: Optional high-strength wrist pin upgrade available for extreme power applications. Use part number P222350250H (Please ensure you select the "upgrade only" option).
- All-Motor Configurations: Please visit our Normally Aspirated section to view our selection of high-compression All-Motor pistons for this engine.
Custom Orders & Support:
- Custom Pistons: If you require custom modifications or unique specifications, we can manufacture a set tailored for you. Please email us at sales@traumpistons.com
- WhatsApp Support: Chat with us at +1 (424) 448-2875
TOYOTA 3TC STD TURBO - 86 / 9:1 is backordered and will ship as soon as it is back in stock.
