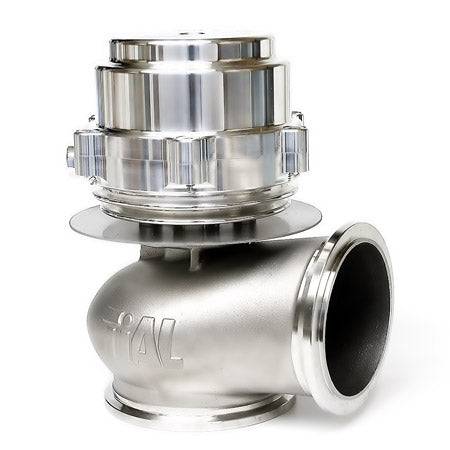

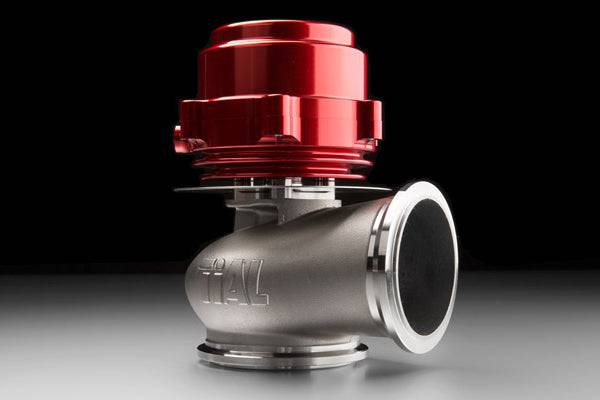

Tial V60 Wastegate V Band

The largest unit in the TiAL lineup. This massive 60mm wastegate will control boost with dead on accuracy in the most demanding situations. The V60 is a favorite in the drag racing and road racing industries, from the burnout box to the finishing line at Circuit de la Sarthe

• High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
• High temperature silicone Nomex reinforced actuator diaphragm.
• 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
• Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
• All Stainless Steel hardware.
• Mating weld flanges are 304L
• Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
• Race proven at Le Mans
• Flows 330CFM @ 1psi differential pressure

Included with every Tial V60: V60 Assembly V60 Valve Seat 2 TiAL Air Fittings Inlet Flanges and Clamps Outlet Flanges and Clamps TiAL Designed V-Band Clamps and Flanges are manufacture in house. CNC machined Stainless steel clamps and CNC machined flanges ensure a secure and pressure tight fit. TiAL's V60 is equipped with the racing valve stem. The Wear Coating is resistant the the corrosive effects of Lead oxide which is present when running leaded racing fuel.

Configuration

---

V60	Option
Flange Materials	304L Stainless
Pipe Size	Inlet Flange: 2.5" OD, Outlet Flange: 2.375" OD
Colors	Black, Blue, Red, Purple, Silver
Spring Pressures	.149bar to 1.048bar
Thread	Air Ports (2): M10 x 1.0
