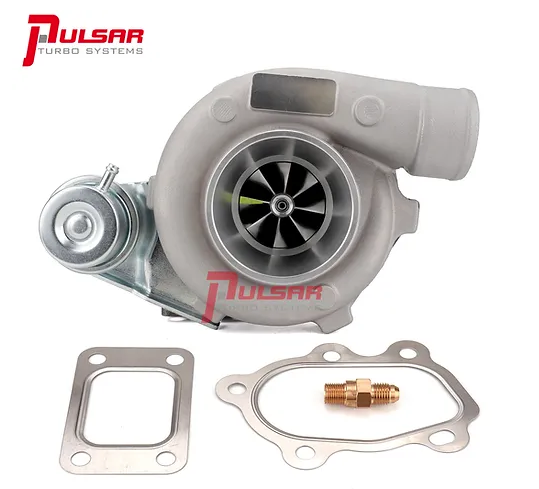

Pulsar Turbo PTX2871R GEN2 Dual Ceramic Ball Bearing Turbocharger

• T51R housing option requires an extra 7 days handling time
• Please note, although Gen 2 internally , this unit is supplied with a Gen 1 compressor housing
• Recommended engine displacement 1.6 to 2.5 litres
• Dual Ceramic Ball Bearing System
• 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 9-blade Turbine Wheel
• Gen2 Cover Integrated with the Speed Sensor Port
• 0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel, etc. turbine housings options
• V-Band Flange kit(s) for the exhaust housing included
• Wastegate actuator supplied on internally gated units with compressor housing. (13psi)
• Compressor Inlet: 4"
• Compressor Outlet: 2"
• Oil Feed: 7/16-24 UNF
• Oil Drain: Std T3 oil drain flange
• Water In/Outlet: M14x1.5

• Max Air Flow rate: ~45 lb/min, rated @ 550 FWHP

Turbochargers come high speed trim balanced ready to use and include fitting hardware.

Remember, buying your PTX performance ball bearing turbochargers from us means you receive:

• a complete BRAND NEW turbocharger
• a full hardware install kit*
• a full VAT invoice
• NO import charges, duty fees or other hidden charges (UK CUSTOMERS ONLY)
• 12 Months UK-based Warranty

.

7-10 WORKING DAYS DISPATCH

**where available
