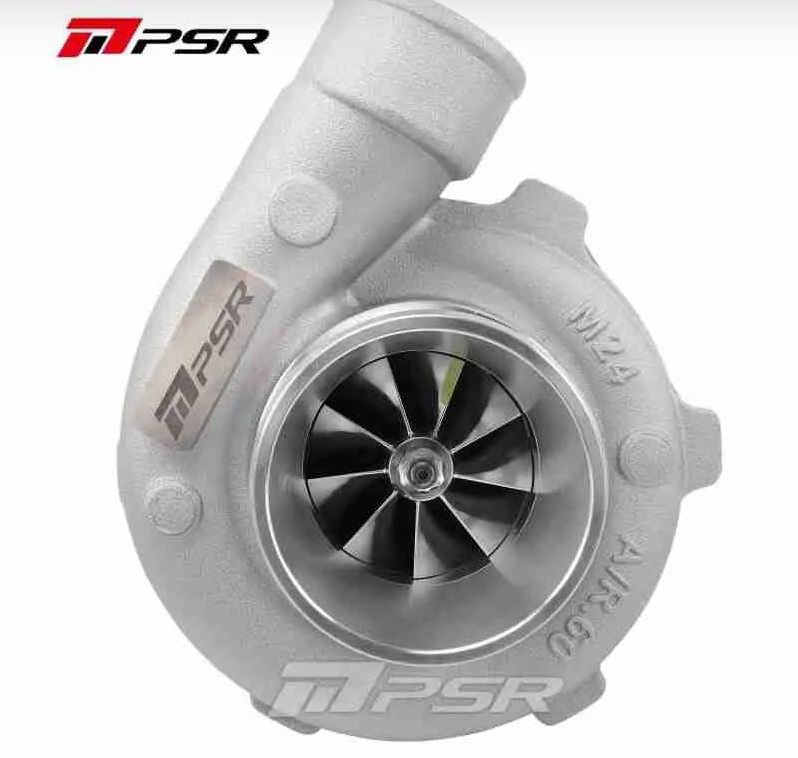

Pulsar Turbo PSR3076 Gen2 Compact Dual Ball Bearing Turbocharger

• Dual Ceramic Ball Bearing System
• 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel
• Multiple options for turbine housing
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: ~65 lb/min, rated @ 750 FWHP
  • Compressor Wheel: 58*76mm
  • Turbine Wheel: 60*55mm
  • Compressor Inlet: 3″ Hose
  • Compressor Outlet: 2″ Hose
  • Turbine Inlet: T3, T4 or 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band (3.55″OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.

Turbochargers come high speed trim balanced ready to use and include fitting hardware.

Replaces OE part number:

-

Remember, buying your PTX performance ball bearing turbochargers from us means you receive:

• a complete BRAND NEW turbocharger
• a full hardware install kit*
• a full VAT invoice
• NO import charges, duty fees or other hidden charges (UK CUSTOMERS ONLY)
• 12 Months UK-based Warranty

.

7-10 WORKING DAYS DISPATCH

*where available
