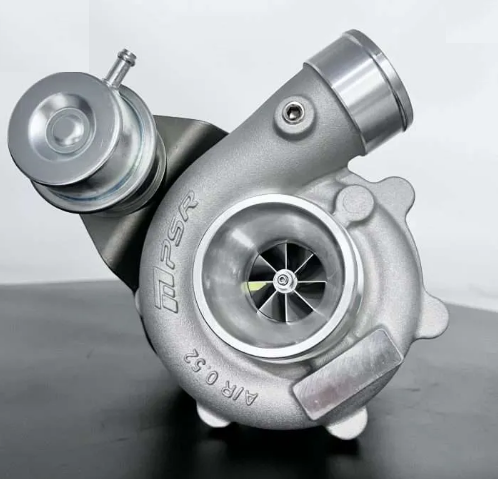

Pulsar PSR 3436C Journal Bearing Turbocharger (HP Rating 200)

Pulsar 3436C Turbo Specifications:

• Meeting Requirements of the Smallest Engines
• Journal Bearing System, Oil-cooled Center Housing
• Forged Fully-Machined Compressor Wheel with Extended Tip Aerodynamics Design
• 11 Blade 713c Turbine Wheel, 39*36mm
• 360 Degree Thrust Bearing
• Internal Wastegate Turbine Housing, 0.45A/R
• HP Rated at 200HP at the flywheel
• Suitable Engine Size: 0.4-1.0L

• Bearing Systems: Journal Bearing
• Compressor Wheel: 34*46mm
• Turbine Wheel: 39*36mm
• Compressor Inlet: 60mm Hose
• Compressor Outlet: 50mm Hose
• Turbine Inlet: 3 Bolt
• Turbine Outlet: 4 Bolt
• Oil Feed(excl’): M10 x 1
• Internal Wastegate Turbine Housing A/R: 0.45

Remember, buying your PSR 3434C journal bearing turbochargers from us means you receive:

• a complete BRAND NEW turbocharger
• a full hardware install kit*
• a full VAT invoice
• NO import charges, duty fees or other hidden charges (UK CUSTOMERS ONLY)
• 12 Months UK-based Warranty
• Delivery from UK dealer

As a UK turbocharger specialist, we can offer FULL servicing and repair services to the Pulsar Turbo range of units.

7-10 WORKING DAYS DISPATCH

*where available
