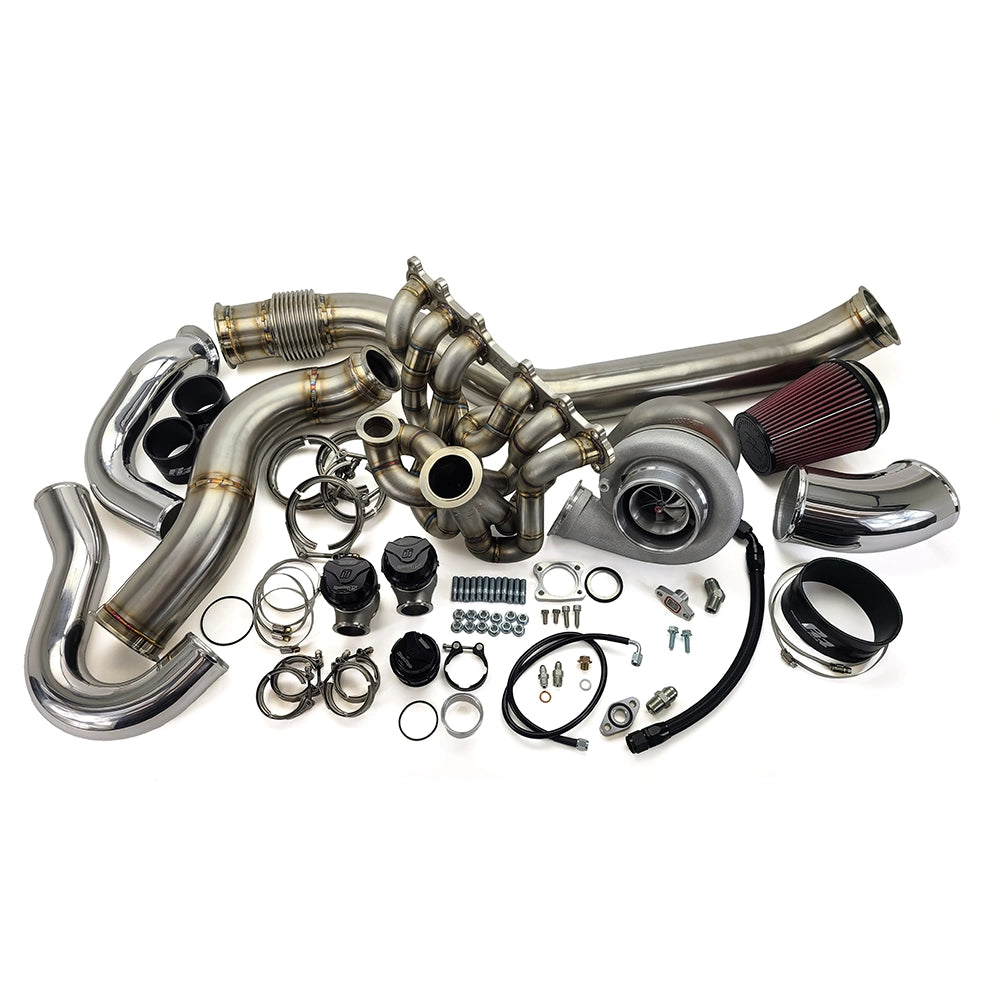

PHR PowerHouse Racing PHR Turbo Kit Builder (V23, V45) - Equal Length, V-Band

Make it yours

No compromise

2.8 quadrillion possible combinations:
When considering turbo kit possibilities for the 2JZ, the possible variations are vast. It is virtually assured that no two turbo kits would nor should be the same. Each build has it's individual goals on how the turbo kit should perform. And therefore all of the components in the turbo kit change from vehicle to vehicle in order for each build to achieve those performance goals. It is simply not possible to create a one size fit's all turbo kit.

PHR has created a tool for you to build your perfect turbo kit: The PHR Turbo Kit Builder. It is fully customizable to fit your individual needs. Simply use the options above  to select your manifold, turbo and other options to build your one-of-a-kind turbo kit.

Below you will find a breakdown and more details about each selection to help you in the building of your kit.

Configurable product — 25 option sets (10,000+ combinations), more than Shopify's 100-variant limit. Base configuration pushed; full configurator on the supplier page. Available options:

• Chassis: MKIV Supra (1993 - 2002), SC300 (1991 - 2001), IS300 (1998 - 2005, GS300 (1997 - 2005)
• Left or Right Hand Drive: LHD, RHD
• Cylinder Head: Turbo (GTE), Non Turbo (GE)
• Manifold: V23A (1.25" Runners, Cast Collector), V23 (1.25" Runners, Billet Collector), V45 (1.5" Runners, Billet Collector)
• Dual Gate or Single Gate: Dual Gates, Single Gate
• Manifold Coating: No Coating, Coat Manifold 2000 Degree Black
• Turbo: No Turbo, 6266 JB, Gen 1, S-Cover, 6266 BB, Gen 2, S-Cover, 6266 BB, Next Gen, SCP-Cover, 6466 BB, Gen 2, S-Cover, 6466 BB, Next Gen, SCP-Cover, 6466 BB, Next Gen, H-Cover, 6670 BB, Next Gen, SCP-Cover, 6670 BB, Next Gen, H-Cover, 6870 BB, Gen 2, S-Cover, 6870 BB, Gen 2, H-Cover, 6870 BB, Next Gen, SCP-Cover, 6870 BB, Next Gen, H-Cover, 6875 BB, Gen 2, S-Cover, 6875 BB, Gen 2, H-Cover, +11 more
• Turbine Housing: No Turbine Housing, Steel, V-Band Inlet (VB3), .82 A/R, 66 Wheel, Stainless, V-Band Inlet (VB3), .82 A/R, 66 Wheel, Stainless, V-Band Inlet (VB3), 1.05 A/R, 66 Wheel, Stainless, V-Band Inlet/Outlet (VB4), .81 A/R, 70 Wheel, Stainless, V-Band Inlet/Outlet (VB4), .96 A/R, 70 Wheel, Stainless, V-Band Inlet (VB4), .81 A/R, 75 Wheel, Stainless, V-Band Inlet (VB4), .96 A/R, 75 Wheel, Stainless, V-Band Inlet (VB5), Sportsman,1.00 A/R, 75 Wheel, Stainless, V-Band Inlet (VB5), Sportsman, 1.15 A/R, 75 Wheel, Stainless, V-Band Inlet (VB5), Sportsman, 1.28 A/R, 75 Wheel, Stainless, V-Band Inlet (VB5), Sportsman, 1.00 A/R, 85 Wheel, Stainless, V-Band Inlet (VB5), Sportsman, 1.15 A/R, 85 Wheel, Stainless, V-Band Inlet (VB5), Sportsman, 1.28 A/R, 85 Wheel
• Compressor Cover Finish: None, Matte Black Powder Coat, Gloss Black Powder Coat, Polished
• Turbine Housing Coating: No Turbine Housing Coating, Coat Turbine Housing 2000 Degree Black
• Wastegate: No Wastegate, Dual Turbosmart 45mm Black, Dual Turbosmart 45mm Sleeper, Dual Turbosmart 45mm Lite Black, Dual Turbosmart 45mm Lite Sleeper, Dual Turbosmart 45mm Blue, Dual Turbosmart 45mm Purple, Dual Turbosmart 45mm Red, Dual Precision 46mm Wastegates, Dual TiAL MVR Black, Single Turbosmart 60mm Black, Single Turbosmart 60mm Sleeper, Single Turbosmart 60mm Blue, Single Turbosmart 60mm Purple, Single Turbosmart 60mm Red, +2 more
• Dumptube: No Dumptube, Dual 1.75" Dumptubes, Single 2.375" Dumptube, Recirculate Dual 1.75" Dumptubes, Recirculate Single 2.375" Dumptube
• Dumptube Coating: No Dumptube Coating, Coat Single 60mm Dumptube 2000 Degree Black, Coat Dual Dumptubes 2000 Degree Black
• Downpipe: No Downpipe, 3.0" Stainless Downpipe, Mandrel Bent, 3.0" Titanium Downpipe, Mandrel Bent, 3.0" Titanium Downpipe, Pie Cut, 4.0" Stainless Downpipe, Mandrel Bent, 4.0" Titanium Downpipe, Mandrel Bent, 4.0" Titanium Downpipe, Pie cut
• Downpipe Coating: No Downpipe Coating, Coat 3.0" Downpipe 2000 Degree Black, Coat 4.0" Downpipe 2000 Degree Black
• Midpipe: No Midpipe, 3.0" Stainless Midpipe, Mandrel Bent, 3.0" Titanium Midpipe, Mandrel Bent, 3.0" Titanium Midpipe, Pie Cut, 4.0" Stainless Midpipe, Mandrel Bent, 4.0" Titanium Midpipe, Mandrel Bent, 4.0" Titanium Midpipe, Pie Cut
• Midpipe Coating: No Midpipe Coating, Coat 3.0" Midpipe 2000 Degree Black, Coat 4.0" Midpipe 2000 Degree Black
• Intake Kit: None, 4" Raw, 4" Gloss Black, 4" Matte Black, 4" Polished, 5" Raw, 5" Gloss Black, 5" Matte Black, 5" Polished
• Oil Feed Kit: No Oil Feed Kit, Black Line, TT Block, Stainless Line, TT Block, Black Line, NA Block, Stainless Line, NA Block
• Oil Drain Kit: No Oil Drain Kit, Stainless Braided Line with Black Hose Ends, Black Braided Line with Black Hose Ends
• Add Breather Filter for Idle Air Control Motor (IACV): No Breather, Add Breather Filter
• Hot Side Intercooler Pipe Size: No Intercooler Pipes, 2.5" (S or SCP Cover), 2.5" (S or SCP Cover) to Greddy 3-Row, 3.0" (H-Cover), 3.0" V-band (Sportsman)
• Hot Side Intercooler Pipe Finish: None, Gloss Black, Matte Black, Polished
• Add Blow Off Valve or Flange: No Blow Off Valve or Flange, Turbosmart Race Port BOV Flange Only, TiAL BOV Flange Only, TurboSmart Raceport Black, TurboSmart Raceport Sleeper, TurboSmart Raceport Blue, TurboSmart Raceport Purple, TurboSmart Raceport Red, TiAL Q, Black
• Weld BOV Flange on Hotside Piping: No Welding, Weld Flange on Hot Side Piping
