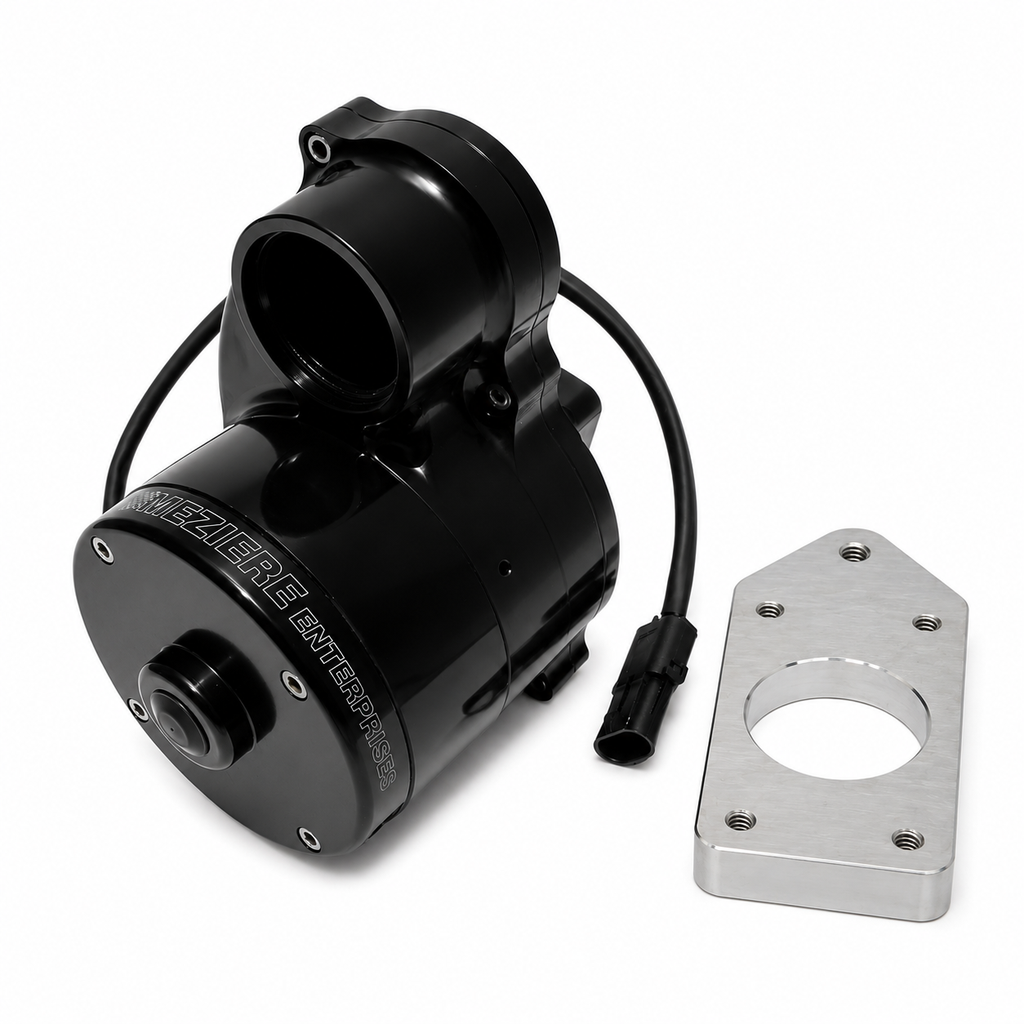

PHR PowerHouse Racing Meziere Electric Water Pump, Radiator Mounted, Single Out, 55 GPM

This water pump model features:

• Radiator or tank mount, single exit design.
• Lightweight design. This pump is a full pound lighter than our standard unit.
• Suitable for street or drag strip use.
• 2400+ hour life expectancy.
• Show quality black anodized finish.
• All stainless steel hardware and weld-on mounting plate included.
• Light weight. Complete standard unit weighs only 4.9 pounds!
• Stainless steel large diameter main shaft with high performance ceramic seal.
• Single outlet port threaded #20AN to accept our standard WN Style fittings.
• #12AN, #16AN, #20AN, 1¼", 1½" or 1¾" slip hose inlet fitings available.

Technical Specifications:

• Finishing The System: This pump is supplied complete with the mount plate but without the outlet fitting. The fitting needs to be ordered according to the size of the radiator hoses.
• Amperage draw: Under normal use the pump will draw 11-12 amps.
• Overall Height Dimension: The standard pump is 5.2" long from the mounting surface to the tip of the pump.
• Pump Weight: This application weighs 5.9 lbs.
• 16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.
