PHR PowerHouse Racing Driveshaft Tail Flange for PHR 3.5"Driveshafts for Supra/SC300
PHR PowerHouse Racing Driveshaft Tail Flange for PHR 3.5"Driveshafts for Supra/SC300 is backordered and will ship as soon as it is back in stock.
Request a Quote
Product:
Description
Description

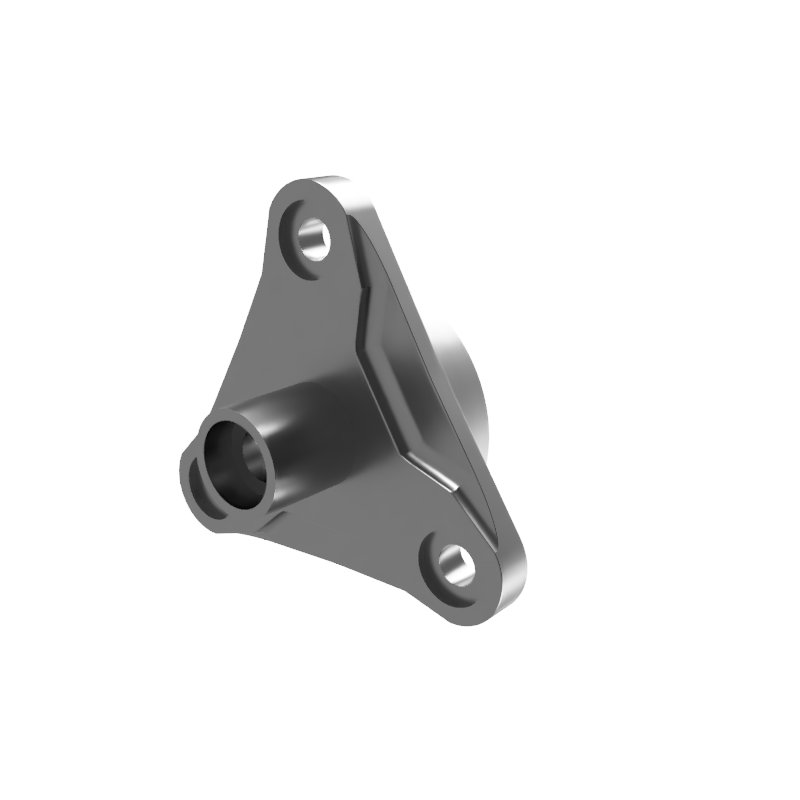

This is the tail flange we use in our 3.5" Driveshafts. You can use it to build your own custom driveshaft. It fit's the larger flange found on twin turbo models. It will not fit the bolt pattern for non turbo vehicles.
Bolt Pattern Circle diameter: 100mm
Pilot Length: 31.5mm
Pilot OD: 32mm
Pilot ID: 16mm (5/8")
Driveshaft Tube Size: 3.5"
Seal: https://www.mcmaster.com/5154T12/
Bolt Size: 12mm
Bolt Head Max OD: 22mm
