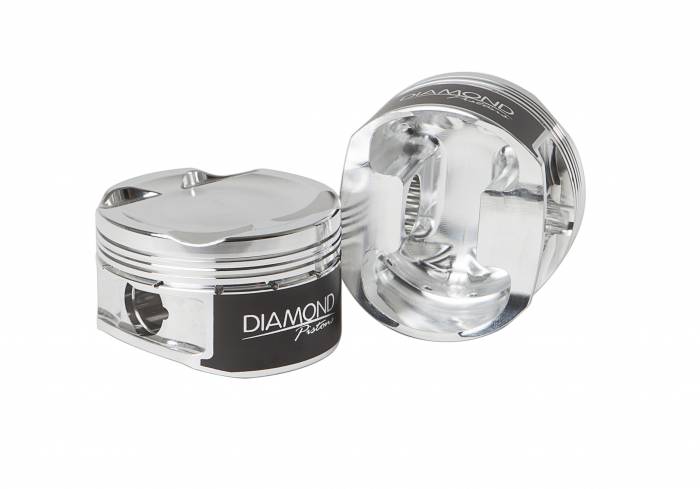

Diamond Racing Forged Pistons Set Ford 1.6L Ecoboost 3.205 81.4mm Stroke 79mm STD -5.9cc 10.0:1
is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Specs
Bore Diameter 79mm (STD)
Compression Ratio 10.0:1
Rod Length 5.276in / 134mm
Stroke 81.4mm Standard
Pin .827in x 2.250in x .180in
Piston Features:
Piston crowns designed to work with OEM direct injection
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Side gas ports for better ring seal
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 3.641 x .040 head gasket
Top ring down dimension: .250"
Premium 8620 .180W wrist pins chamfered for roundwire locks included
Premium 1.0mm x 1.2mm x 2.8mm ring package included
Over-sized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.115" intake and .145" exhaust
2618 material for High HP/Boost applications
