CP Carrillo Piston Kit Honda Acura B18 BLOCK With B16A OR B18C HEAD (stock sleeves)

CP Pistons is one of the most trusted names in the industry, and for good reason. Their extensive shelf catalog provides the user with many of the options that you'd normally be resigned to going to a custom piston for.  Their standard offering already includes Dual Pin Oilers - providing double the amount of oil to the wrist pin, radiused valve reliefs  and the pin fitting final hone on the wrist pin bore.  They even include an Accumulator Groove as a standard option. This provides a small pocket for the combustion gasses to collect after the first ring, reducing ring flutter and providing a better seal allowing more downward force on the piston A.K.A. - make more power.

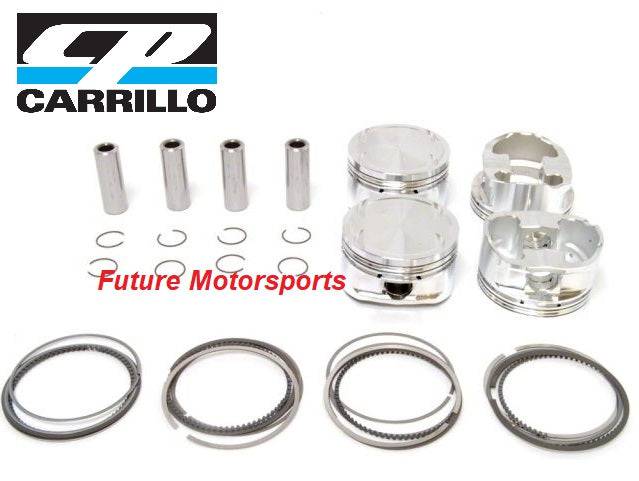

Pistons come with wrist pins, pin locks and complete set of piston rings.

CP Standard Shelf Pistons Features

• Dedicated forgings
• Balanced to or – 1 gram
• Wrist pins provided at no cost
• Pin fitting provided at no cost
• Accumulator Grooves
• Dual forced pin oilers
• Pick lock grooves
• Fully CNC machined
• USA Made

  CAM AND BARREL The Cam is the shape around the skirt of the piston and the barrel is the shape from under the oil ring to the bottom of the skirt. Extensive research and development has been done to find the optimum skirt shape for each piston. These shapes have been found to seal up cylinders and reduce harmonics in the bore better than ever before. Depending on the forging and application, different cam and barrel profiles are utilized for maximum performance. Having the correect cam and barrel on a part promotes the following: 1. Tighter clearances 2. Less noise 3. Better ring seal 4. More power 5. Increased durability ANTI DETONATION GROOVES (CONTACT REDUCTION GROOVES)  Also know as contact reduction grooves, which limit the piston/cylinder contact during high temperature and high RPM. These grooves also protect the top ring by disrupting detonation waves. DOUBLE PIN OILERS  Double Pin Oilers (opposed to single pin oilers), in conjunction with our annular reservoir, can add twice the amount of oil from the cylinder wall to the wristpin bore. This is a standard option on any piston that receives forced pin oiling. PIN FITTING The pin bore is precision honed to attain an exact pin clearance. Depending on the application clearances typically range from .0003 to as much as .003 between the wristpin and pin bore.
