BC RACING

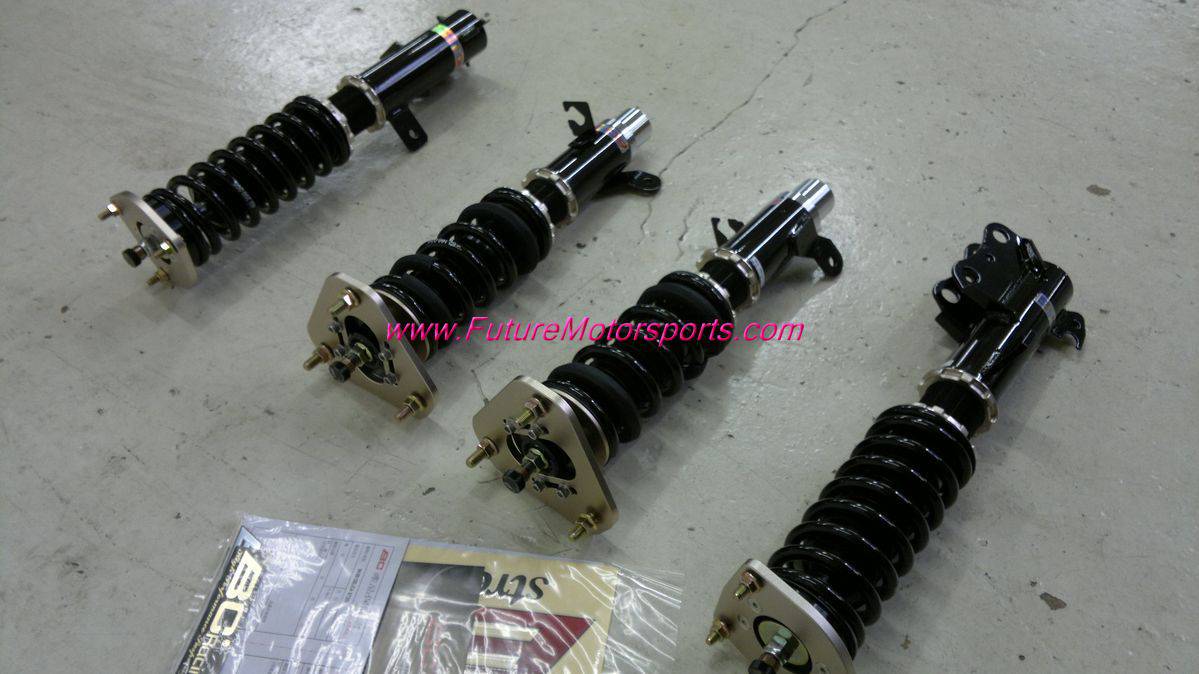

BC RACING BR SERIES TYPE RA COILOVER SUSPENSION KIT CELICA GT4 ST205

BC RACING BR SERIES TYPE RA COILOVER SUSPENSION KIT CELICA GT4 ST205

Regular price £1,182.86
Regular price Sale price £1,182.86
Sale Sold out
Quick Info SKU: C26-BR-RA-CELICA-GT4-ST205 Category: CELICA GT4 ST205 Tags: BRAND_TOYOTA

For Street and Circuit Use
Front : Inc. Pillowball Top Mount / Camber were available
Rear : Rubber Top Mount or No Top Mount

BR Series Coilover : Type RA

For Street and Circuit Use



Specifications

Top Mount Type : Pillowball Front, Rubber Rear

Front Spring Rate : 8kg/mm (448lbs/in)

Rear Spring Rate : 5kg/mm (280lbs/in)




Information

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity. As the damper unit operates the oil contained within heats up. The viscosity of oil changes as its temperature varies which can lead to changes in the damping characteristics of the unit.

BC Racingonly use a very high quality oil with their coilovers but go that extra mile tomaximise performance and build their BR range with a large 53mm diameter damperbody. This increases the capacity of the unit which increases the volume of oil contained which in turn reduces the peak temperature and so significantly improves damper performance.
