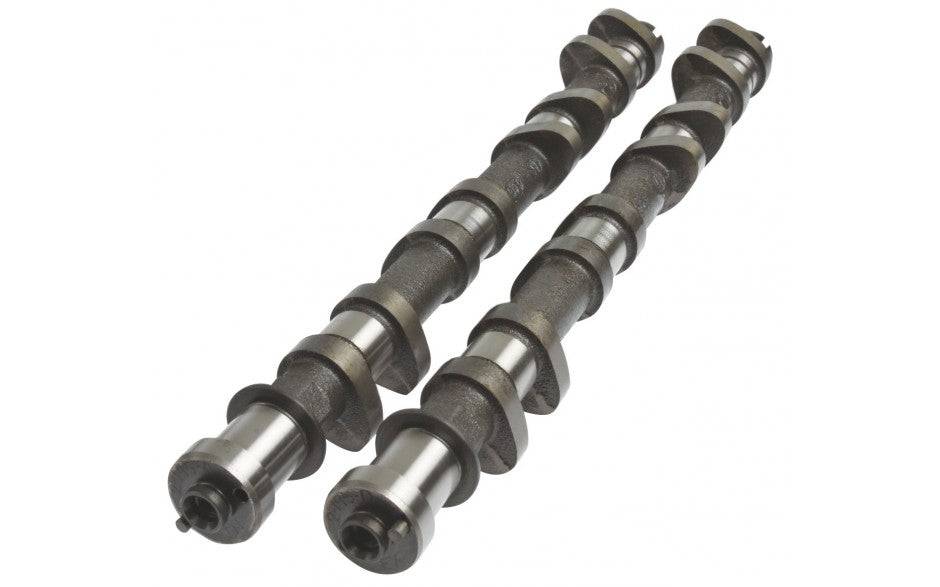

3-195-TB Kelford Camshaft Celica GT4 ST205 3SGTE 272 Duration, 10.80mm Lift. 3S-GTE TURBO cam for well built engines with 450-600HP turbo 3-195-TB The Kelford Cams range of camshafts suits the generation 3 Toyota 3S-GE and 3S-GTE engines, produced from 1994 to 1999. These engines have the tappet shim on top of the valve tip so can benefit from higher lift cam profiles compared to the Gen 2 engines. Kelford can also manufacture cams to your specifications, or design a profile to suit your specific application.

Engine Make:		Engine Model:				Part Number:
TOYOTA		3S-GE (Gen 3)				3-195-TB
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
		Exhaust:	0.30mm	Set	COLD	at the	CAM
Cam Lift:		Intake:			11.05mm	Exhaust:	11.10mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			10.80mm	Exhaust:	10.80mm
Advertised Duration @	0.30mm	Intake:			272	Exhaust:	272
Duration @	1.00mm VALVE LIFT	Intake:			232	Exhaust:	232
Timing @	1.00mm VALVE LIFT	IVO:			8 BTDC	EVO:	50 BBDC
		IVC:			44 ABDC	EVC:	2 ATDC
Suggested Centre Lines:		Intake:			108	Exhaust:	114
VALVE	Lift @ TDC	Intake:			1.88mm	Exhaust:	1.15
