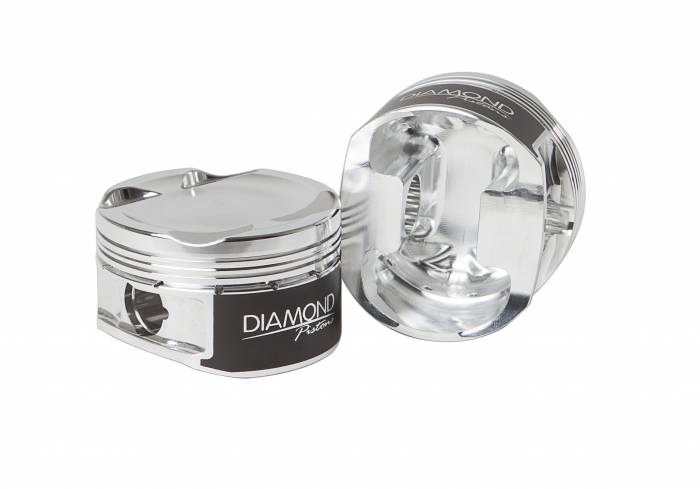

Diamond Racing Forged Pistons Set HD Pin Ford 3.5L Ecoboost 3.4133 86.7mm Stroke 93mm -.67cc 10.0:1
is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Specs
Bore Diameter 93mm (+0.020in Over)
Compression Ratio 10.0:1
Rod Length 6.011in / 152.7mm
Stroke 86.7mm Standard
Pin H-13 .905in x 2.500in x .225in
Piston Features:
Piston crowns designed to work with OEM direct injection
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 3.641 x .040 head gasket
Top ring down dimension: .300"
Premium 8620 .180W wrist pins chamfered for roundwire locks included
Premium 1.5mm x 1.5mm x 3.0mm ring package included
Over-sized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.090" intake and .000" exhaust
2618 material for High HP/Boost applications
