ProEFi | SKU:
Pro48-Kit-3SGTE
ProEFi Pro70 & Pro48 Plug & Play Kit - Toyota 3SGTE Celica / MR2 1989-1999
Regular price
£2,790.00
Unit price
/
Unavailable
Shipping calculated at checkout.
ProEFi Pro70 & Pro48 Plug & Play Kit - Toyota 3SGTE Celica / MR2 1989-1999 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
ProEFi Pro70 & Pro48 Plug & Play Kit - Toyota 3SGTE Celica / MR2 1989-1999.

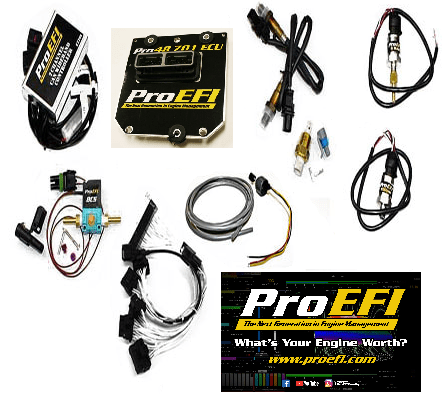

The plug and play kit comes with the following parts:
-
ProEFi Pro48 Standalone ECU.
-
ProEFi Plug & Play 3SGTE Harness.
-
ProEFi 5bar Map Sensor Kit.
-
ProEFi Intake Air Temp Sensor.
-
ProEFi 150psi Fuel Pressure Sensor kit.
-
Proefi Wideband Sensor Kit.
-
ProEFi Wideband Controller.
-
ProEFi Boost Control Solenoid Kit.
-
ProEFi I-Boost (5 Position Boost Switch).
| Processor | The Pro48 uses the superfast MPC563 56mhz Processor |
| Drive By Wire | Yes |
| Injectors | 4 Peak n Hold |
| Coils | 8 |
| TPS | Yes – Adaptive |
| Coolant Temp | Yes |
| Air Temp | Yes |
| Map Sensor | Yes – Unlimited Range |
| Flex Fuel | Yes – requires additional signal conditioning |
| Idle Control | Pulse Width and Stepper motor – Adaptive |
| Wideband O2 | External driver required 2 channel cabable |
| Cam | Yes – Hall/VR capable |
| Crank | Yes – Hall/VR capable |
| Variable Cam | Yes |
| Traction Control | CAN based applications Only! |
| Nitrous Control | 4 Stages. V.E. Based**** |
| Boost Control | Multiple control strategies.*** |
| Launch Control | Multiple control strategies.*** |
| Fuel Pump Control | Yes* |
| Analog Inputs | 14* |
| Low Side Outputs | 6 6amp capable Low Side outputs* |
| Tach | Yes – Software configurable |
| Digital Inputs | |
| High Current Bridges | 1 Channel set – Used for Stepper motor control |
| Speed Inputs | None |
| Drive By Wire | Yes |
| Fault Coding Safety | Yes** |
| MIL (CEL) | Yes – Malfunction indicator with fault codes |
| Main Relay Control | Yes |
| 5v Ref | 1 location |
| Sensor Grounds | 1 location |
| Key Switch Power | Yes |
| Permanent Power | Yes |
| Battery Backup | No |
| Chassis Ground | 2 Locations |
| Can Channels | 1 Channel |
| Serial Connection | No |
| RS485 Connection | No |
| Internal Memory | Limited to Fault logic |
| USB Direct Connection | USB on PC, Can connection at ECU |
