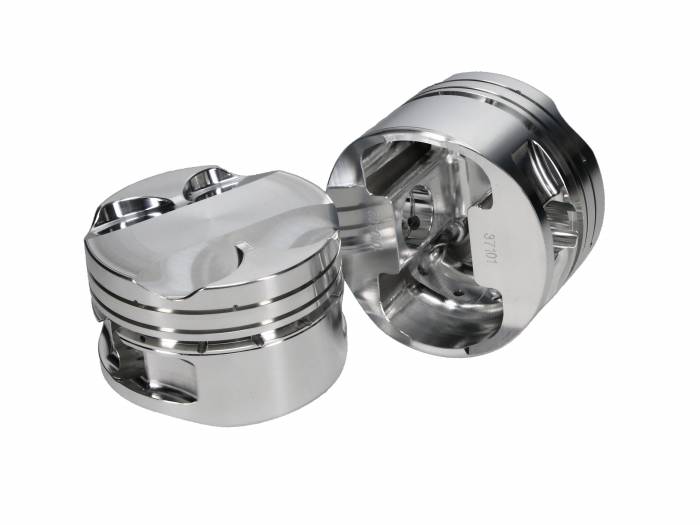

Diamond Forged Rebel Series Pistons Integra LS RS GS B18A B18B 22mm Pin 84.5mm +3.5mm -2.5cc 10.0:1
is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Specs
Bore Diameter 84.5mm (+0.140in Over)
Compression Ratio 10.0:1
Rod Length 5.394in / 137mm
Stroke 89mm Standard
Pin .866in x 2.250in x .200in
Note Requires rods with +1mm larger 22mm pin bushings
Piston Features:
3D milling on piston crowns for ready to install finish
Side gas ports for better ring seal
Ratios figured for 85mm x .030 head gasket @ 8.345" Deck Height
Top ring down dimension: .300"
Designed for pin buttons for maximum strength
Premium H-13 .200W wrist pins included
Premium 1.2mm x 1.2mm x 2.8mm ring package included
Over-sized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.200" intake and 0.150" exhaust
2618 material for High HP/Boost applications
